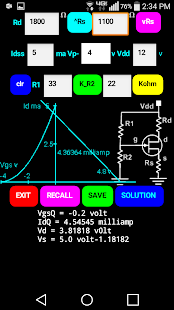

JFET Voltage Divider Bias Screenshots
JFET Voltage Divider Bias Info
This app has 2 modes of operation. In mode 1 you put in all the circuit values and tap solution to get a tutorial on how the bias Q point is determined graphically from a plot of Shockley's equation and the straight line plot for Vgs versus Id from Kirchoff's voltage equation.In mode 2, the user can vary either R2 or Rs up and down by 10% and see dynamic changes to the plot and Q point to gain insight on circuit behavior and design.
